Front Loader CLX with a self leveling module

CLX Front Loader with Self-Leveling Module – modern design and maximum control

The CLX front loader with a self-leveling module is an advanced version of our latest design for mini tractors. This model has been developed for users who expect even greater precision, ease of operation, and safety during material handling.

Like the standard CLX model, this version combines the simplicity of the T-300 design with the functionality of the FL series loaders. This means it features simple and durable loader arms, along with hydraulic quick couplers and a system for fast removal of the entire loader.

Additionally, this version is equipped with a self-leveling module, which keeps the bucket in a constant horizontal position while raising and lowering the loader arms. This ensures more stable material transport and significantly reduces the risk of spillage.

The loader offers a lifting capacity of up to 300 kg, a bucket capacity of 150–160 liters, and a working width of 120 cm, making it suitable for efficient work across many applications.

Applications of the CLX Loader with Self-Leveling

Thanks to its versatility, the loader is suitable for various industries:

• Agriculture – loading hay, straw, fertilizers, and handling bales
• Construction – transporting building materials and performing earthworks
• Industry – handling and transporting production materials
• Municipal services – snow removal and maintenance of green areas
• Forestry – working with wood, branches, and timber materials

Key Advantages of the CLX Loader with Self-Leveling

This model combines structural durability with solutions that significantly improve everyday operation.

Key features include:

• simple and robust arm construction inspired by the T-300 model
• hydraulic quick couplers for fast system connection
• quick removal of the entire loader thanks to a hook and quick-coupling system
• ability to park the loader on support stands

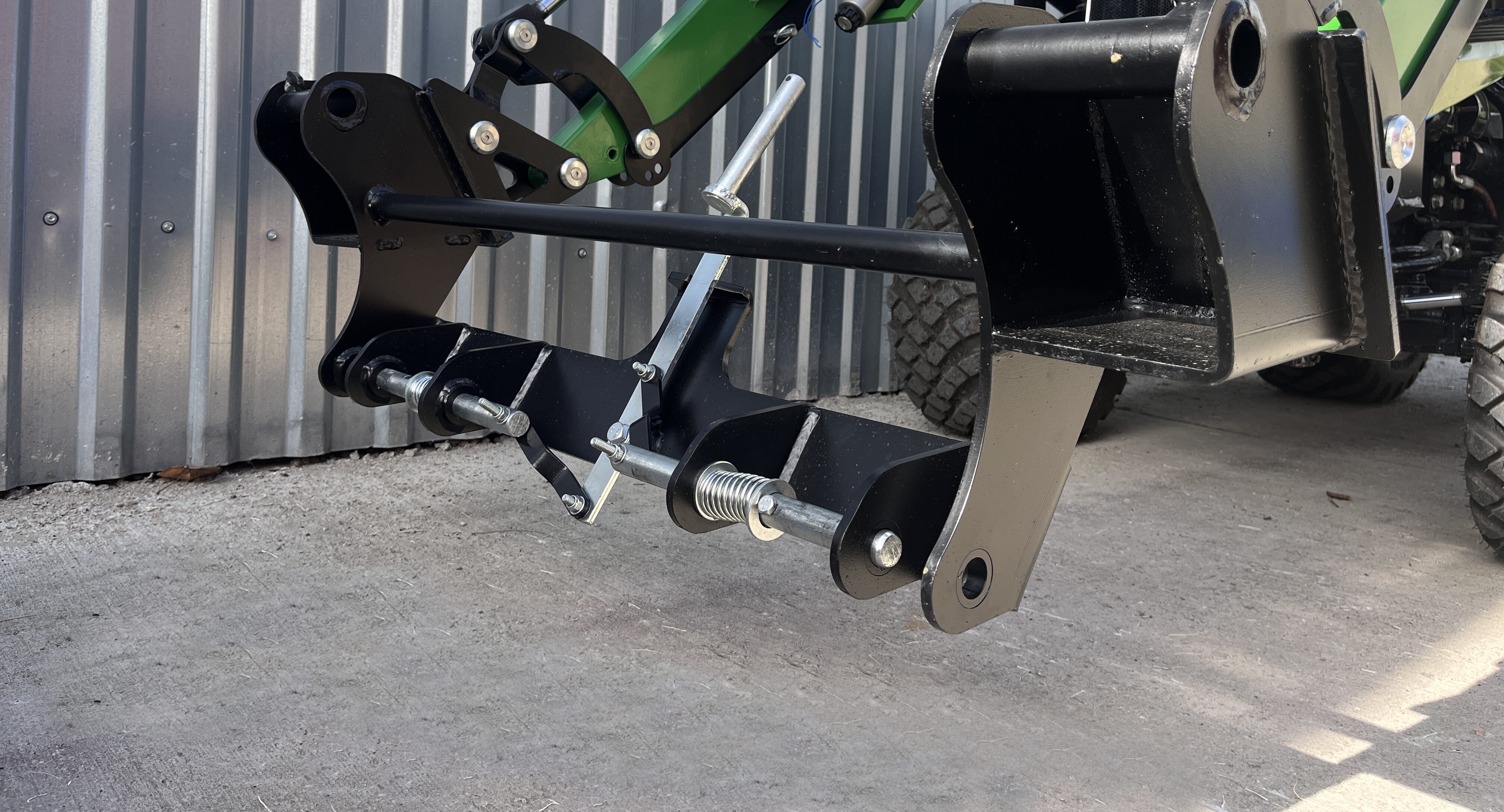

• quick attachment change system
• easy bucket replacement without tools
• two attachment mounting systems:

Sanko Frame

• classic mounting system
• bucket change using two pins

Euro Frame (Euro hitch)

• spring-loaded locking system with handle
• very fast attachment change

Key Feature of This Version

Self-leveling module, which:

• keeps the bucket level during lifting
• increases stability of transported material
• improves working comfort and safety

Hydraulics

The standard version includes a 2-section hydraulic control valve, while an optional 3-section valve with joystick control is available for operating additional hydraulic attachments.

It is also possible to remove the self-leveling module and operate the loader in a standard mode if needed.

Set Includes

The basic package includes:

• front loader with hydraulic cylinders
• self-leveling module
• quick-attach frame + bucket (150–160 L, 120 cm width)
• parking stands
• quick attachment change system (Sanko frame or Euro frame)
• pins with grease fittings
• complete set of hydraulic hoses and mounting components

Technical parameters:

We offer a wide range of attachments for loaders – buckets and various types of forks!!!

Each bucket can additionally be equipped with forged teeth for heavy-duty terrain work. Sanko’s loaders can be adapted to any mini-tractor on the market, whether it’s a new model or several decades old.

Feel free to contact us for a complete trade offer and product availability information. We are ready to answer all your questions and advise on the best solution for your needs.
